69 Series Precision Miniature Bearings: Structure, Production & Applications

Introduction

In the world of micro mechanical transmission components, miniature deep groove ball bearings act as the core supporting part for countless compact, high-precision equipment. Among all common thin-wall miniature bearing models, the 69 series bearings stand out for their ultra-thin cross-section, lightweight structure and stable rotational performance. At Nova Bearing, we have focused on the independent production of precision miniature bearings including the full 69, 68 and 62 miniature series for years. Our production workshops, precision testing equipment and finished product samples fully show the strict manufacturing standards behind our products.Unlike standard deep groove ball bearings with thicker walls, the 69 series features a slim inner and outer ring design, saving plenty of installation space for miniaturized machinery. Designers of power tools, medical instruments, optical devices and brushless motors often choose 69 series miniature bearings when space is limited. This guide covers the structural features, standardized production flow, strict quality inspection and diverse application scenarios of 69 series precision miniature bearings, combined with our on-site production photos and product samples.

1. Core Structural Advantages of 69 Series Precision Miniature Bearings

1.1 Ultra-Thin Wall Slim Design

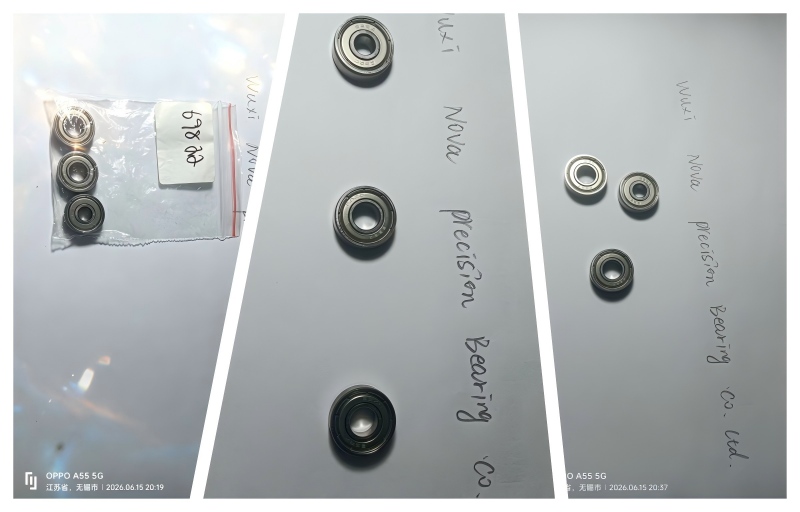

The most distinctive feature of 69 series bearings is the thin cross-section. Compared with 62 and 63 miniature bearings of the same inner diameter, 69 series models have narrower outer rings and thinner walls, which cut down radial space occupation obviously. As shown in our packaged products, bulk 69 series bearings are small and neat, convenient for storage and assembly on tiny mechanical parts.This thin-wall design will not weaken the basic load capacity under regular working conditions. Our R&D team optimizes the raceway curvature of precision miniature bearings, so steel balls bear force evenly during high-speed rotation. For equipment bearing light radial and axial loads, 69 series bearings strike an ideal balance between compact size and long service life.

1.2 Standardized Size Specifications for Universal Matching

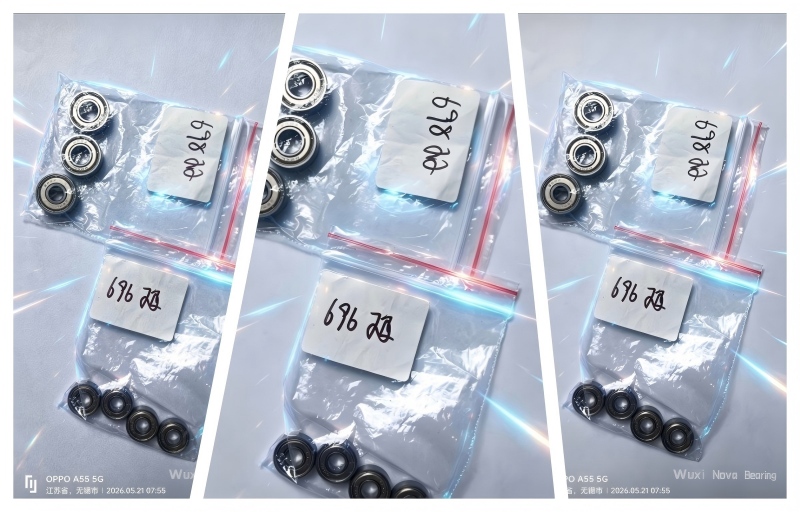

Nova Bearing provides a complete range of standard 69 series miniature bearings, covering mainstream models from 6900 to 6910. We supply open type, ZZ metal shield type and 2RS rubber sealed type to meet different demands. All finished products are packed in transparent bags with handwritten model labels, making specification identification and delivery management efficient.

• Open type: Suitable for dust-free sealed equipment, easy for lubrication maintenance;

• ZZ double metal shield: Basic dustproof effect, widely used as power tool bearings and garden machinery parts;

• 2RS double rubber seal: Great waterproof and dustproof performance, the preferred choice for medical device bearings and fishing reel components.

The complete size lineup enables 69 series bearings to replace multiple traditional models in mini equipment, helping manufacturers reduce product volume and material costs.

1.3 High Rotational Precision & Low Noise Performance

All factory-produced 69 series products are P0 and P6 grade precision miniature bearings, and customized P5 high-precision versions are available for high-end devices. In our inspection workshop, professional dial indicators are used to test radial runout, clearance and rotation smoothness of every batch before delivery.Matched with small high-hardness steel balls and superfinished raceways, 69 series bearings generate little vibration and noise at high speed. This advantage makes them popular for handheld power tools, home appliances and precision measuring instruments.

2. Full Production Process of Nova Bearing 69 Series Miniature Bearings

Our workshop photos record the whole manufacturing process of 69 series precision miniature bearings. Every procedure from raw material processing to finished product inspection follows strict quality control rules. The production flow includes six core steps: raw material forging, turning, heat treatment, superfinishing, assembly and final testing.

2.1 Raw Material Forging & Turning Processing

We adopt high carbon chromium bearing steel GCr15 as raw material, which owns high hardness, wear resistance and stable dimension after heat treatment. Steel tubes are forged into blanks first, then processed by CNC lathes to form inner and outer ring semi-finished products.Piles of processed bearing rings are cleaned and stored in metal baskets. The thin-wall feature of 69 series puts forward higher requirements for turning precision. Our equipment controls dimensional tolerance within ±0.003mm to avoid stuck rotation or loose assembly in later use.

2.2 Heat Treatment & Superfinishing

Heat treatment is critical to improve wear resistance. After quenching and tempering, the hardness of bearing rings reaches HRC 60-64, resisting long-term friction. Tiny burrs and uneven surfaces will appear after heat treatment, so superfinishing is a must for all precision miniature bearings.This process polishes raceways to mirror smoothness, lowers friction and rotation noise, and extends service life. Only qualified products can enter the assembly workshop.

2.3 Automatic Assembly & Sealing Installation

Workers assemble inner rings, outer rings, steel balls and nylon retainers for 69 series bearings. According to customer needs, we install metal dust covers or rubber sealing rings on both sides. Lightweight nylon retainers will not bring extra rotation resistance to thin-wall bearings.After assembly, bearings are cleaned to remove oil residue and metal debris. We inject special grease adapting to different working environments, then seal and label the products. The packaged samples in our photos are finished goods ready for shipment worldwide.

2.4 Strict Precision Testing Before Delivery

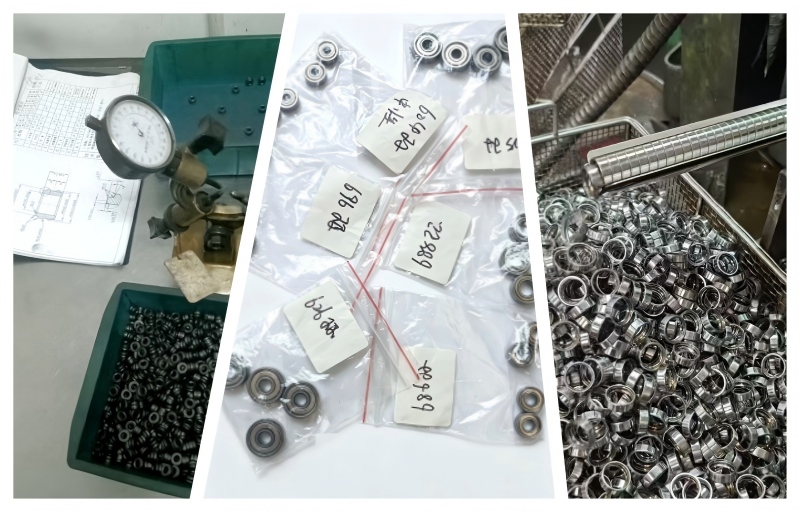

Every batch of 69 series bearings undergoes sampling inspection before delivery. Inspectors use professional tools to test runout, internal clearance, rotation performance and sealing. Unqualified products will be reworked or scrapped directly. The complete testing system guarantees stable quality for bulk orders.

3. Main Application Fields of 69 Series Precision Miniature Bearings

Combined with our website search data, including power tool bearings, medical device bearings and optical instrument bearings, 69 series thin-wall bearings are applied in a wide range of precision equipment.

3.1 Handheld Power Tools & Garden Equipment

“Bearings for handheld power tools” and “power tool bearings” are frequent search terms for our website. Mini grinders, electric screwdrivers and garden pruning tools all need compact and durable transmission parts.Running at high speed with continuous vibration, handheld power tools require bearings with strong anti-fatigue ability. ZZ dust-proof 69 series bearings can block metal dust produced during operation, preventing early damage. Many garden equipment manufacturers purchase 6900, 6901 and 6902 series bearings in bulk for their products.

3.2 Medical Devices & Pharmaceutical Equipment

“Medical device bearings” and “medical bearings” are important demand sources from overseas clients. Medical device bearings have strict standards for bearing size, cleanliness and noise. Our P6 and P5 high-precision 2RS sealed 69 series bearings adopt food-grade low-volatility grease, with no oil leakage to pollute medical supplies, perfectly fitting portable testing devices and micro surgical tools.

3.3 Optical Instruments & Mini Brushless Motors

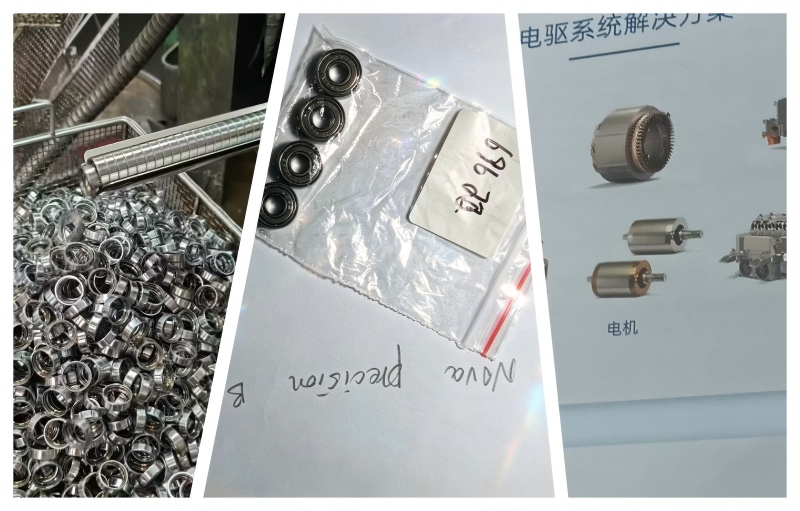

Optical measuring devices and camera components need bearings with ultra-low runout. Superfinished 69 series bearings ensure stable operation of lens adjusting parts without image shaking.The attached picture shows the structure of brushless motors, another key application scenario. Mini brushless motors are widely used in power tools, home appliances and portable smart devices. They pursue small size, high speed and long lifespan, and the ultra-thin 69 series bearings fit their structural design perfectly. The bearings for brushless motors reduce motor volume effectively,and maintain smooth, low-noise operation during long-time high-speed running. Most micro electric drive systems choose 69 series precision bearings as core supporting parts.

3.4 Fishing Reels & Hobby Precision Machinery

Our guide about fishing reel maintenance also mentions this application. Spinning fishing reels need small and corrosion-resistant bearings for smooth line retrieval. Stainless steel 69 series bearings resist water erosion, and their slim size fits the narrow inner space of reel spools, favored by many fishing gear brands.

4. Why Choose Nova Bearing as Your Supplier

Brand search term nova bearings keeps growing, which proves global clients recognize our production strength of thin-wall miniature bearings. We have three core advantages:First, complete independent production chain. We finish all procedures in our own factory, so we can well control delivery time and product quality for bulk orders. Our production lines, testing equipment and finished samples fully demonstrate our manufacturing capacity.Second, full specifications and customized service. We supply all standard 69 series models, and can customize size, seal type, material and precision grade as per client drawings. We serve both mass orders of standard power tool bearings and small-batch high-precision medical device bearings.Third, professional technical support. Our website releases professional articles about precision miniature bearings production and application, helping buyers select suitable models and solve operational problems. Our team also provides one-on-one selection consultation for new product R&D.

Conclusion

As mechanical equipment develops toward miniaturization and high precision, thin-wall bearings represented by 69 series will keep steady market demand. With ultra-thin structure, stable high-speed performance and universal specifications, 69 series precision miniature bearings are indispensable for power tools, medical instruments, optical devices and mini brushless motors.Nova Bearing provides reliable bearing solutions for global manufacturers with standardized production, strict inspection and rich industry experience. Whether you need standard bulk products or customized high-precision bearings, we can meet your procurement requirements. Visit novabearing.com for more product details, or contact our team for samples and quotations.
