Introduction: Why Small Bearings Matter More Than You Think

When it comes to high-performance electronic devices, the spotlight often shines on powerful motors, advanced circuit boards, and cutting-edge sensors. Yet, hidden deep within every spinning component, there is a tiny, unassuming part that makes all the difference: the miniature bearing. For manufacturers of drones, robotics, medical devices, and consumer electronics, choosing the right miniature bearing is not just a minor detail—it is the foundation of product reliability, efficiency, and longevity.

At Wuxi Nova Bearing, we specialize in manufacturing precision miniature ball bearings, from 1mm to 15mm in size, designed to meet the rigorous demands of today’s most advanced micro motors and devices. Our bearings are engineered for low noise, high speed, and long life, making them the preferred choice for engineers and OEMs who refuse to compromise on quality. In this comprehensive guide, we will explore the critical role of miniature bearings, their key applications, and how choosing the right supplier can transform your product’s performance.

The Critical Role of Miniature Bearings in Micro Motors

A micro motor, whether it is a brushless motor for a drone, a coreless motor for a toy, or a vibration motor for a smartwatch, relies entirely on its bearings. The bearing is the interface between the rotating shaft and the stationary housing, and its primary functions are to:

- Reduce friction between moving parts, maximizing efficiency and battery life.

- Support the shaft and maintain precise alignment, preventing wobble and ensuring smooth rotation.

- Absorb radial and axial loads, protecting the motor from damage under high speeds or stress.

- Minimize noise and vibration, which is crucial for consumer electronics and precision equipment.

Our product range, including the 604ZZ, 625ZZ, 626ZZ, 686ZZ, 688ZZ, 696ZZ, and 698ZZ series, is specifically designed to address these challenges. Each bearing is manufactured to strict tolerances, ensuring a perfect fit for your motor’s shaft diameter and housing.

Coreless Motors: The Heart of RC Models and Medical Devices

Coreless motors, known for their lightweight design and high efficiency, are widely used in RC models, drones, and medical equipment like insulin pumps. These motors operate at extremely high speeds, often exceeding 20,000 RPM, and require bearings that can handle the centrifugal forces without generating excessive heat or noise.

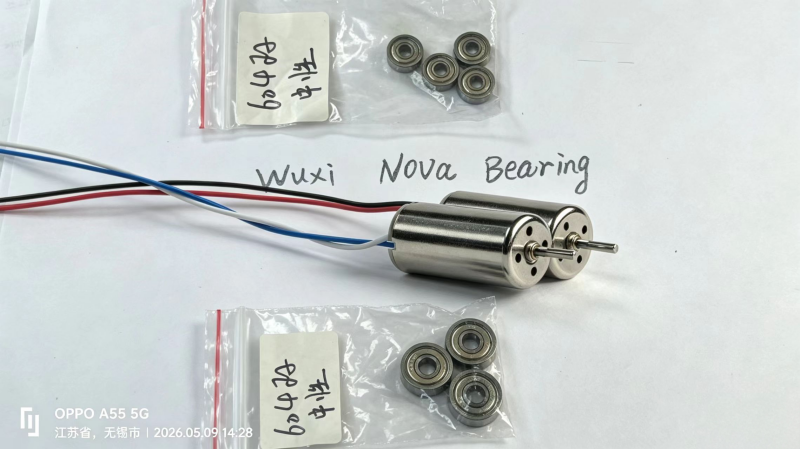

The 604ZZ  miniature bearing is a popular choice for coreless motors. With an inner diameter of 4mm, it offers the perfect balance of size and performance. Our neutral finish ensures compatibility with various lubricants, making it ideal for applications where long service life is a priority. The low-friction design of the 604ZZ bearing directly translates to longer flight times for drones and more reliable operation for medical devices.

Brushless Motors: Powering the Drone and Robotics Revolution

Brushless motors are the workhorses of the drone and robotics industry. They offer higher efficiency, longer life, and greater power density than traditional brushed motors. However, their high-speed operation puts immense stress on the bearings.

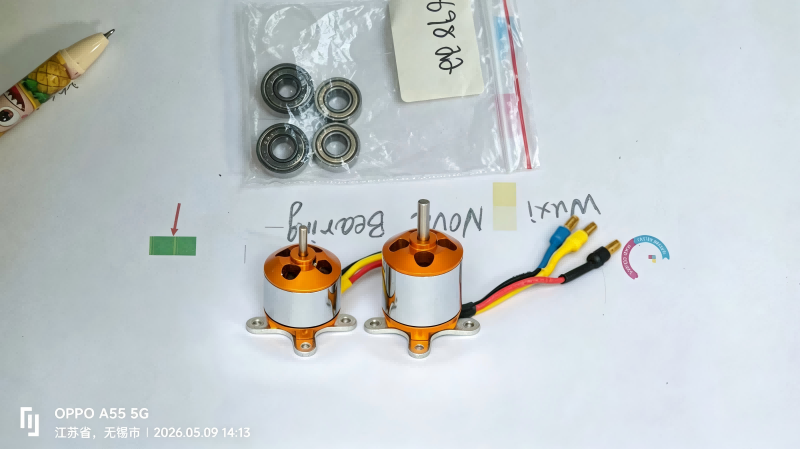

For larger brushless motors, such as those used in quadcopters and RC planes, we recommend our 688ZZ and 698ZZ series bearings. These bearings are built to handle higher loads and speeds, ensuring your motor runs smoothly even during demanding maneuvers. The 698ZZ miniature bearing, with its 8mm inner diameter, is particularly well-suited for mid-sized brushless motors, providing exceptional stability and reducing the risk of motor failure.

Small DC Motors: The Backbone of Consumer Electronics

From electric toothbrushes and camera shutters to toy cars and cooling fans, small DC motors are everywhere. While they may seem simple, these motors require reliable bearings to prevent jamming and ensure consistent performance.

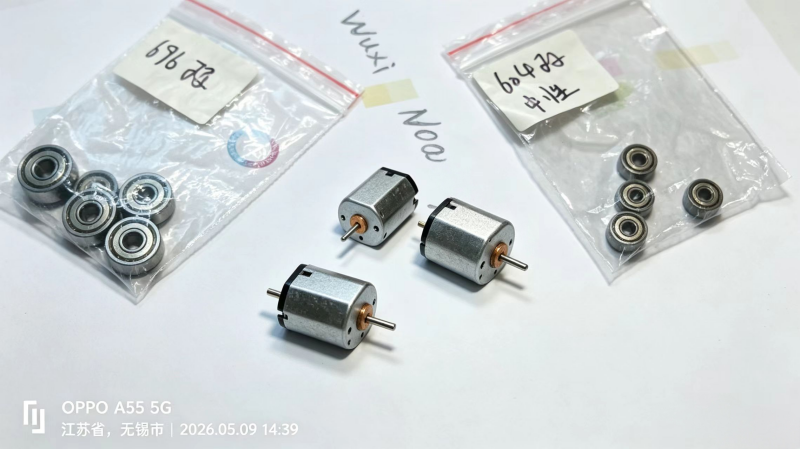

Our 696ZZ and 604ZZ bearings are widely used in these applications. The 696ZZ bearing, with its compact design and 6mm inner diameter, is perfect for small motors found in toys and household appliances. Its durable construction and low cost make it an ideal choice for mass-produced consumer goods.

Key Applications of Wuxi Nova Bearings

Our precision miniature bearings find applications across a diverse range of industries. Here are some of the most common use cases:

1. RC Models and Drones

Drones and RC planes demand high-performance bearings that can handle extreme speeds and vibration. Our bearings are designed to minimize friction, allowing your motors to spin faster and more efficiently, which translates to longer flight times and better performance. The 698ZZ and 688ZZ bearings are particularly popular among drone manufacturers.

2. Medical Devices

In medical equipment like surgical tools, insulin pumps, and laboratory instruments, reliability is non-negotiable. Our bearings are manufactured to strict quality standards, ensuring they meet the hygiene and performance requirements of the medical industry. The 604ZZ neutral bearing is often used in small, precision medical motors.

3. Consumer Electronics

From smartwatches and smartphones to electric shavers and cooling fans, consumer electronics rely on miniature bearings for quiet and efficient operation. Our bearings are engineered for low noise and long life, making them the perfect choice for these applications.

4. Industrial Automation and Robotics

Industrial robots and automation equipment require bearings that can withstand continuous operation and heavy loads. Our range of miniature bearings, including the 625ZZ, 626ZZ, and 696ZZ series, are built to handle the demands of industrial environments.

Why Choose Wuxi Nova Bearing?

In a market flooded with generic bearings, why should you choose Wuxi Nova Bearing as your supplier? Here are the key reasons:

Precision Manufacturing

All our bearings are produced in our state-of-the-art facility in Wuxi, China, using advanced CNC machines and strict quality control processes. We manufacture bearings to ABEC standards, ensuring precise tolerances and consistent performance.

Wide Range of Sizes

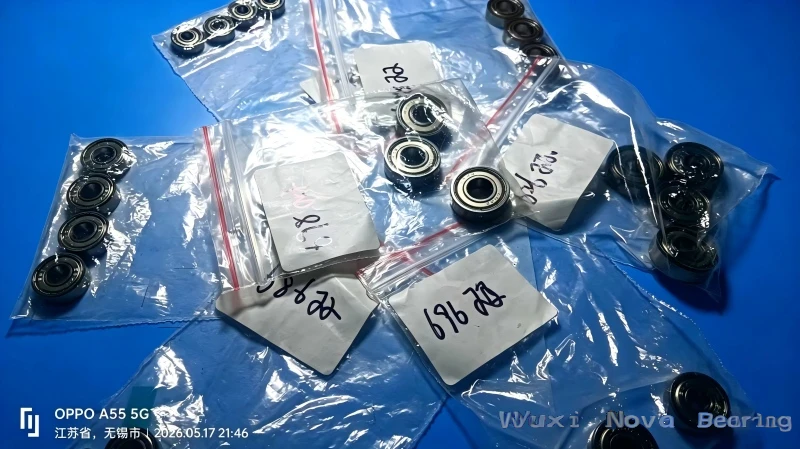

We offer a comprehensive range of miniature ball bearings, from 1mm to 15mm, including all popular series like 604, 625, 626, 686, 688, 696, and 698. This allows you to find the perfect bearing for your specific application, no matter how unique.

Custom Solutions

We understand that one size does not fit all. That’s why we offer custom solutions, including different lubricants, seals, and finishes, to meet your exact requirements. Whether you need a high-temperature grease for industrial use or a dry lubricant for medical applications, we can provide it.

Competitive Pricing

As a direct manufacturer, we are able to offer our customers competitive pricing without compromising on quality. This makes us an ideal partner for both small-scale projects and large OEM orders.

Reliable Support

We pride ourselves on providing excellent customer service. Our team of engineers is always available to answer your questions and help you select the right bearing for your project. We also offer fast shipping to customers worldwide.

A Closer Look at Our Most Popular Bearing Series

To help you make an informed decision, let’s take a closer look at some of our most popular bearing series and their typical applications.

604ZZ Bearing

- Specifications: Inner diameter 4mm, outer diameter 9mm, width 4mm.

- Common Applications: Coreless motors, small DC motors, consumer electronics.

- Key Features: Low friction, high speed, neutral finish for versatile lubrication options.

696ZZ Bearing

- Specifications: Inner diameter 6mm, outer diameter 15mm, width 5mm.

- Common Applications: RC motors, cooling fans, power tools.

- Key Features: Compact design, durable construction, cost-effective.

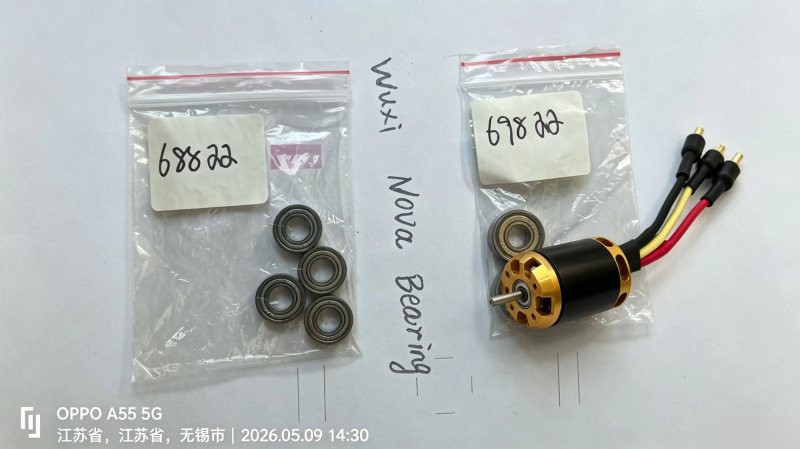

688ZZ and 698ZZ Bearings

- Specifications: Inner diameter 8mm, outer diameter 16mm/19mm, width 5mm/6mm.

- Common Applications: Brushless motors, drones, robotics.

- Key Features: High load capacity, high speed, excellent stability.

How to Select the Right Miniature Bearing for Your Motor

Choosing the right bearing involves more than just matching the size. Here are the key factors to consider:

1. Shaft and Housing Dimensions: The most critical step is to ensure the bearing’s inner diameter matches your motor shaft and the outer diameter matches the housing.

2. Load Type: Determine if the load is primarily radial (perpendicular to the shaft) or axial (parallel to the shaft). Most miniature bearings are designed for radial loads.

3. Speed Rating: Consider the maximum RPM of your motor. High-speed applications require bearings with superior dynamic balance and low-friction design.

4. Operating Environment: Will the bearing be exposed to dust, moisture, or extreme temperatures? This will determine whether you need sealed or shielded bearings and the type of lubricant required.

5. Noise and Vibration Requirements: For consumer electronics and precision equipment, low noise is essential. Our precision-manufactured bearings are designed to minimize noise and vibration.

If you are unsure about which bearing to choose, our technical team is here to help. We can review your specifications and recommend the best solution for your application

Conclusion: Invest in Quality, Invest in Reliability
In the world of micro motors and electronic devices, the bearing is a small component that plays a massive role. Choosing a low-quality, generic bearing can lead to premature motor failure, increased noise, and dissatisfied customers. By investing in high-quality miniature bearings from Wuxi Nova Bearing, you are investing in the long-term success of your products.

We are proud to be a trusted supplier of precision miniature bearings to engineers and manufacturers around the world. Our commitment to quality, innovation, and customer service sets us apart in the industry. Whether you are developing a new drone, a medical device, or a consumer electronic, we have the right bearing solution for you.

Explore our full range of products today, or contact our team to discuss your specific requirements. Let Wuxi Nova Bearing be the unsung hero of your next successful project.
